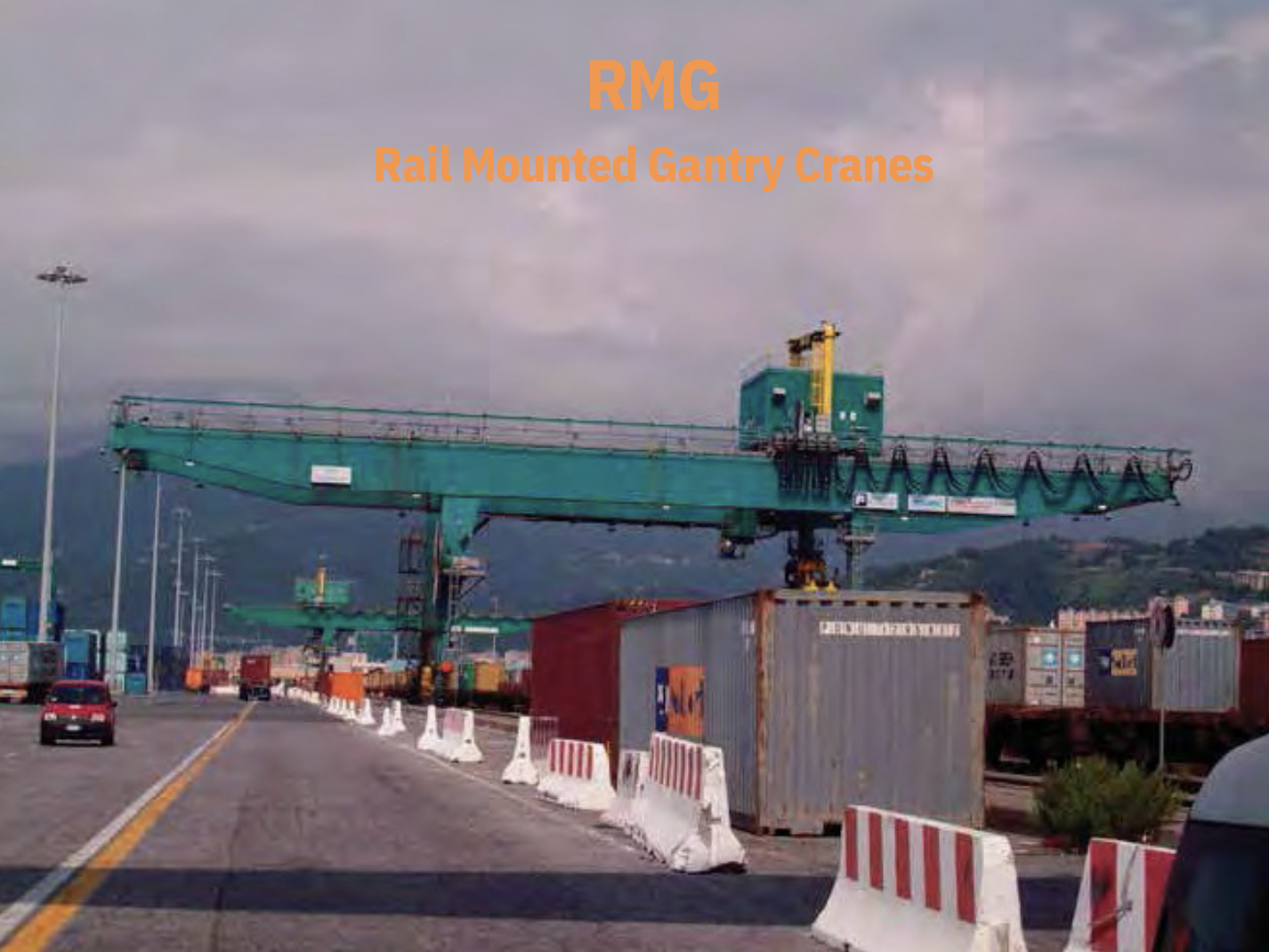

RMG Cranes

The RMG has a rigid lattice square modular jib section specifically designed for port and rail terminals, that allow multiple configuration and precise handling with smooth movements even at high speeds for space-saving container stacking:

High quality material used for long duration and weight saving.
Safe and quick access thanks to ladders system for the operator and maintenance.
Ergonomic cabin for maximum visibility for the operator.
Self power trolley with hoist system intergrated for a precise positioning.
Direct drive wheels.
AC frequency control for all movements to improve performance and movements accuracy.
Designed to be fitted in standard containers and assembled on site for a sensible shipping cost reduction.
Modular system thanks to boom lattice design allow multiple configuration.

Get Started

	RMG - Rail Mounted Gantry Cranes
Container Handling	from 20' to 45' in single and twin-lift mode - 53' available
Capacity - under spreader	45 t ( 50 US tons ) single-lift mode
	60 t ( 66 US tons ) twin-lift mode
Lifting Height	9.5 m ( 31 ft ) - 2 + 1 high cube container
	12.4 m ( 41 ft ) - 3 + 1 high cube container
	15.3 m ( 50 ft ) - 4 + 1 high cube container
	18.2 m ( 60 ft ) - 5 + 1 high cube container
	21.0 m ( 69 ft ) - 6 + 1 high cube container
Cantilever	up to 18m ( 59 ft )
